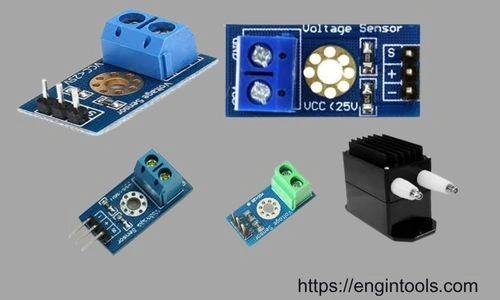

Top 10 Voltage Sensors
Top 10 Voltage Sensors

What is a Voltage Sensor?

A voltage sensor is a device designed to monitor and measure voltage levels within electrical circuits. These sensors provide critical information about the voltage to a controller or monitoring system, enabling safe operation and management of electrical systems.

They can be used in various applications, from simple battery level monitoring to complex industrial systems.

Top 10 Highly-Rated Voltage Sensors
Voltage Sensor

How Does a Voltage Sensor Work?



Voltage sensors function by measuring the electrical potential difference between two points in a circuit. Here’s a simplified overview of their operating principle:



1. Sensing Element: The voltage sensor has a sensing element (such as resistors, capacitors, or operational amplifiers) that converts the voltage into a measurable signal.



2. Signal Conditioning: The raw signal is often conditioned to enhance accuracy. This may involve filtering out noise, amplifying the signal, or converting it to a digital format.



3. Output: The processed signal is then outputted in a form that can be read by other devices, such as microcontrollers, displays, or alarms. This output can be analog (e.g., voltage, current) or digital (e.g., serial data).



Types of Voltage Sensors



Voltage sensors can be categorized into several types, including:



1. Analog Voltage Sensors: Deliver a steady output that correlates directly with the input voltage.



2. Digital Voltage Sensors: Output a discrete signal indicating whether the voltage level is above or below a certain threshold.



3. High Voltage Sensors: Designed to measure high voltage levels, often with specialized insulation to handle high potentials.



4. Low Voltage Sensors: Used for measuring low voltage levels, often found in battery applications.



5. Isolated Voltage Sensors: Provide electrical isolation between the sensor and the circuit to ensure safety and protect sensitive components.



Applications of Voltage Sensors



The applications of voltage sensors are diverse and include:



1. Battery Monitoring: Used in battery management systems to monitor the charge level of batteries.



2. Industrial Automation: Employed in control systems to ensure that machines operate within safe voltage limits.



3. Renewable Energy: Used in solar panels and wind turbines to monitor the output voltage.



4. Power Distribution: Helps in monitoring and managing voltage levels in electrical grids.



5. Consumer Electronics: Incorporated in devices like smartphones and laptops for power management.



6. Automotive Applications: Monitors battery voltage and electrical systems in vehicles.



Top 10 Highly-Rated Voltage Sensors:



1. INA219 High-Side Voltage and Current Sensor

Key Features: Measures high-side voltage, current, and power.

Specifications: 3.2V to 26V input range; I2C interface.

Applications: Battery monitoring, power supply management.

Why Rated Highly: High accuracy and energy efficiency.

Check Price

2. ZMPT101B Voltage Transformer Module

Key Features: Compact voltage sensor for AC voltage detection.

Specifications: Suitable for 250V AC systems.

Applications: Energy meters, smart grids.

Why Rated Highly: Reliable performance and low cost.

Check Price

3. ACS712 Current and Voltage Sensor Module

Key Features: Measures both current and voltage.

Specifications: Available in 5A, 20A, and 30A versions.

Applications: Motor control, solar power systems.

Why Rated Highly: High sensitivity and simple integration.

Check Price

4. LV 25-P Voltage Transducer

Key Features: Isolated voltage measurement with high precision.

Specifications: ±10V to ±500V input range.

Applications: Industrial systems, renewable energy.

Why Rated Highly: Excellent noise immunity and accuracy.

Check Price

5. Voltage Sensor V2 by DFRobot

Key Features: Simple plug-and-play voltage sensing.

Specifications: 0-25V DC range, Arduino compatibility.

Applications: Robotics, embedded systems.

Why Rated Highly: User-friendly design and versatility.

Check Price

6. EmonTx Shield

Key Features: Open-source voltage sensing for energy monitoring.

Specifications: Works with AC adapters.

Applications: Smart home energy tracking.

Why Rated Highly: Customizable and community-supported.

Check Price

7. PZEM-004T Voltage and Current Monitor

Key Features: Compact digital display for voltage, current, and power.

Specifications: Measures up to 300V AC.

Applications: IoT projects, energy audits.

Why Rated Highly: Easy integration with microcontrollers.

Check Price

8. Hi-Link HLK-PM01

Key Features: Compact AC to DC voltage sensor and converter.

Specifications: 90-264V AC input to 5V DC output.

Applications: Power supply designs.

Why Rated Highly: Space-saving and reliable.

Check Price

9. Adafruit INA260

Key Features: Measures voltage, current, and power with high precision.

Specifications: ±36V voltage range.

Applications: Battery-operated systems, IoT.

Why Rated Highly: Advanced power monitoring.

Check Price

10. OpenEnergyMonitor Voltage Sensor

Key Features: Monitors mains AC voltage for home automation.

Specifications: Compatible with Arduino and Raspberry Pi.

Applications: Energy usage analytics.

Why Rated Highly: Robust and easy-to-use.

Check Price

Each of these sensors is chosen for their high user ratings, reliability, and diverse application range. Let me know if you need additional details or links for these sensors!

Conclusion



Voltage sensors are essential components in modern electrical systems, enabling effective monitoring and control. Their applications span across various fields, making them a vital tool for engineers and technicians. The listed brands and products represent some of the most trusted options available, ensuring quality and reliability in voltage measurement.
